RISON TITANIUM Hollow Taper Wheel Lug Bolts – 20PCS Set
A complete 20-piece titanium lug bolt set for aftermarket wheels. Aerospace-grade GR5 (Ti-6Al-4V), 60° conical seat, 28mm thread length, 75mm total length. Available in M12x1.5 and M14x1.5. The hollow taper design with cutout sections reduces weight while maintaining strength, and the titanium construction means these will never rust.

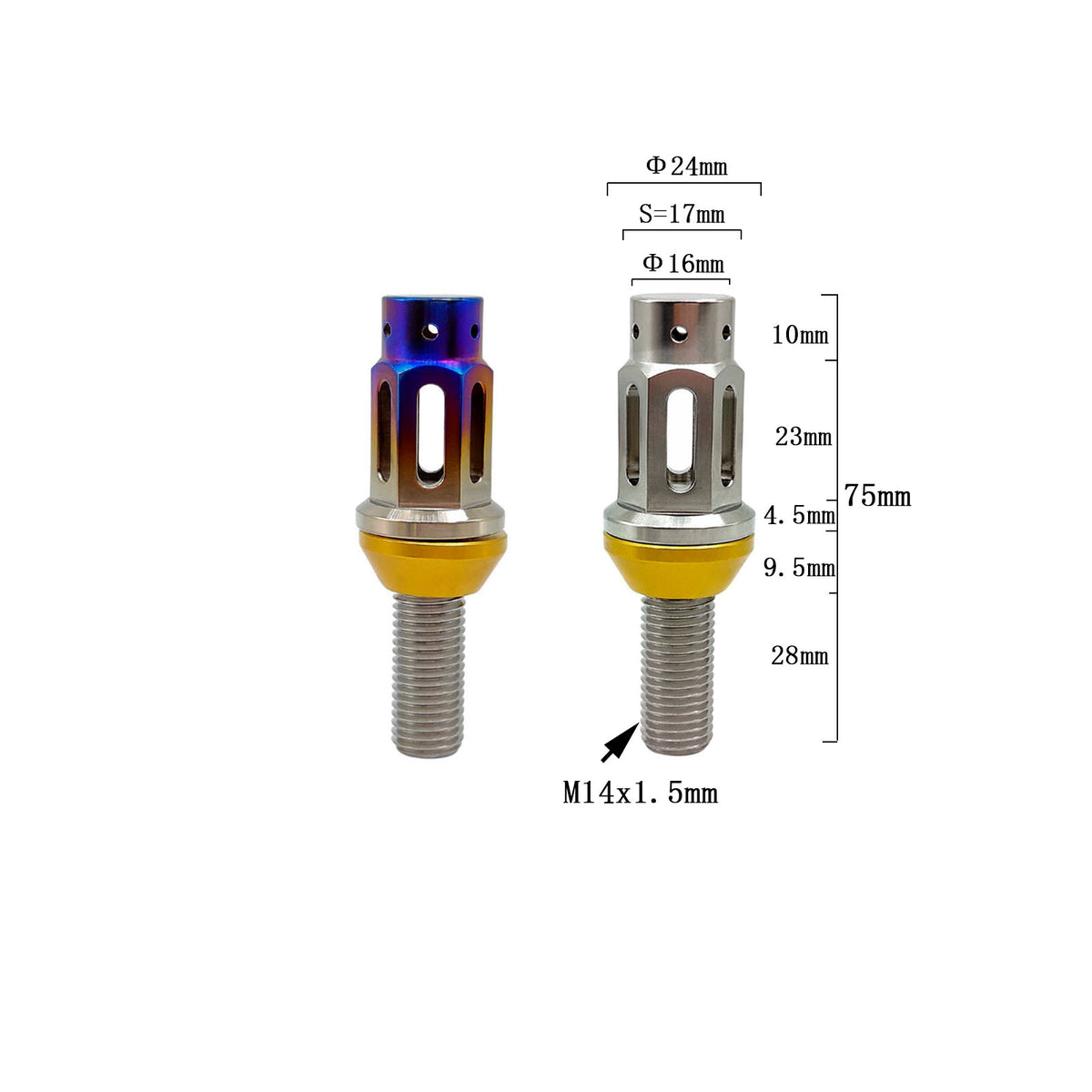

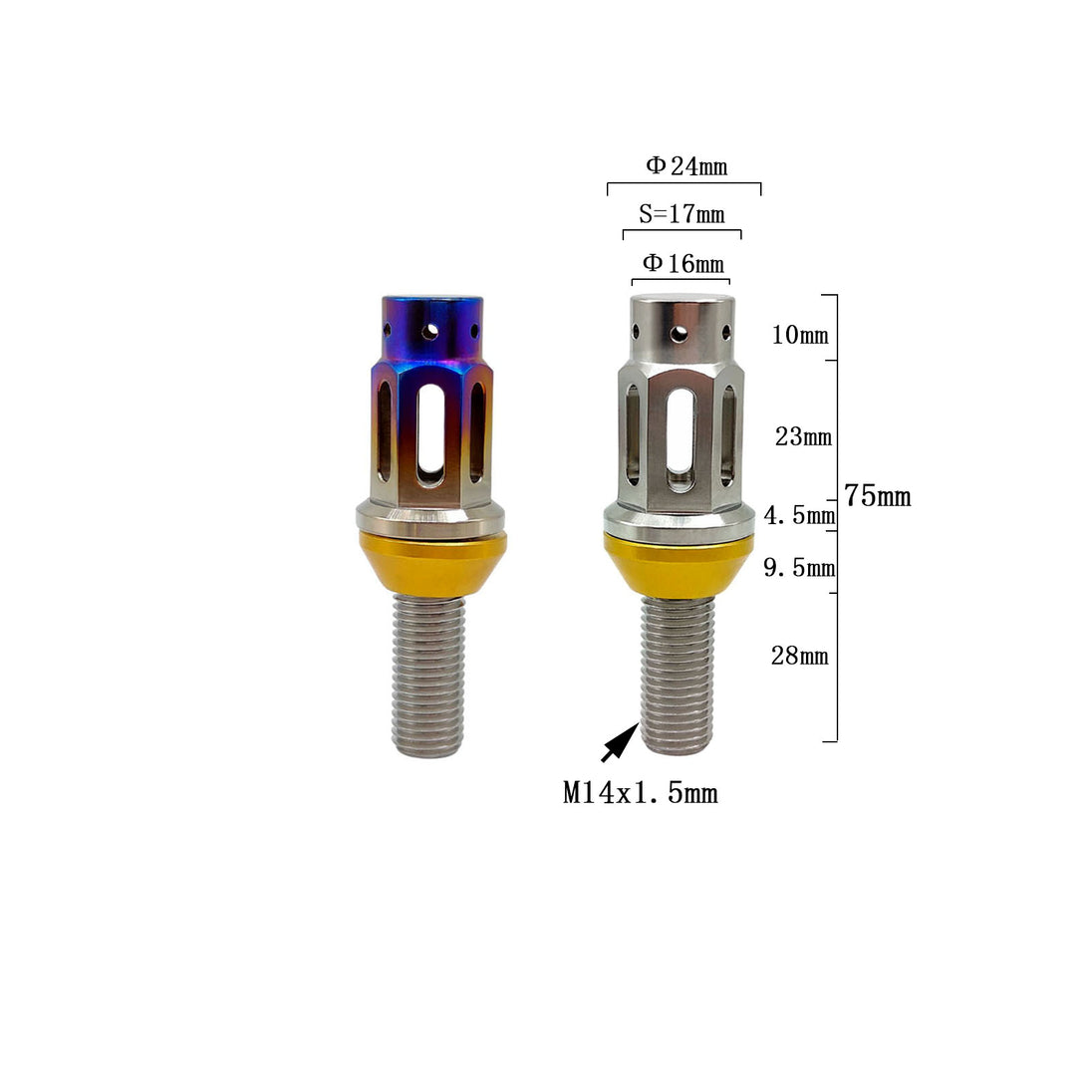

Specifications
| Specification | Value |
|---|---|
| Thread Sizes Available | M12 × 1.5 / M14 × 1.5 |
| Thread Length | 28mm |
| Total Length | 75mm |
| Seat Type | 60° Conical Seat (Tapered) |
| Head Diameter | Φ24mm |
| Head Height | 23mm (hollow section) + 10mm (top) |
| Socket Size | 17mm Hex |
| Material | GR5 Titanium Alloy (Ti-6Al-4V / TC4) |
| Recommended Torque | 120 – 130 N·m (M14) / Consult vehicle manual (M12) |
| Tensile Strength | ≥1000 MPa |
| Weight | ~45% lighter than steel |
| Corrosion Resistance | 100% rustproof |
| Pack | 20 pcs per set |

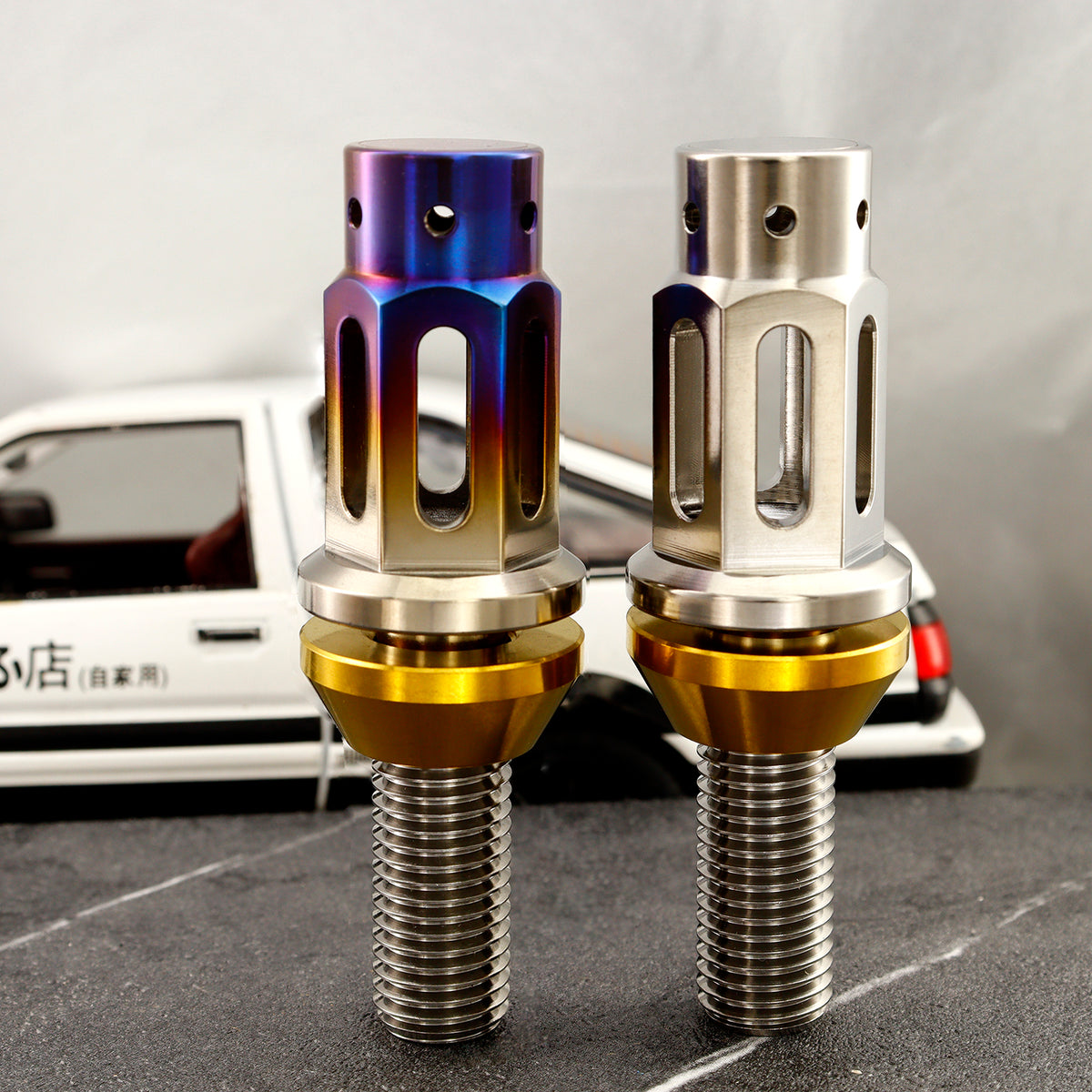

Color Options
| Size | Finish |
|---|---|

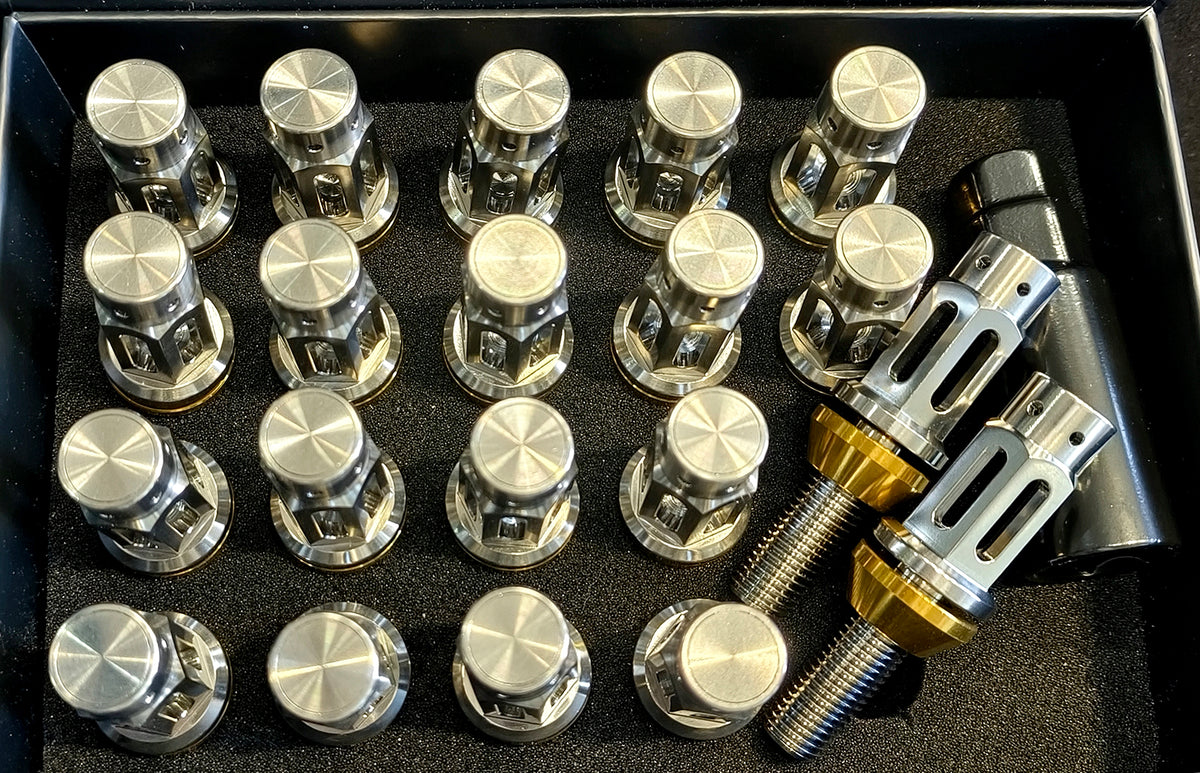

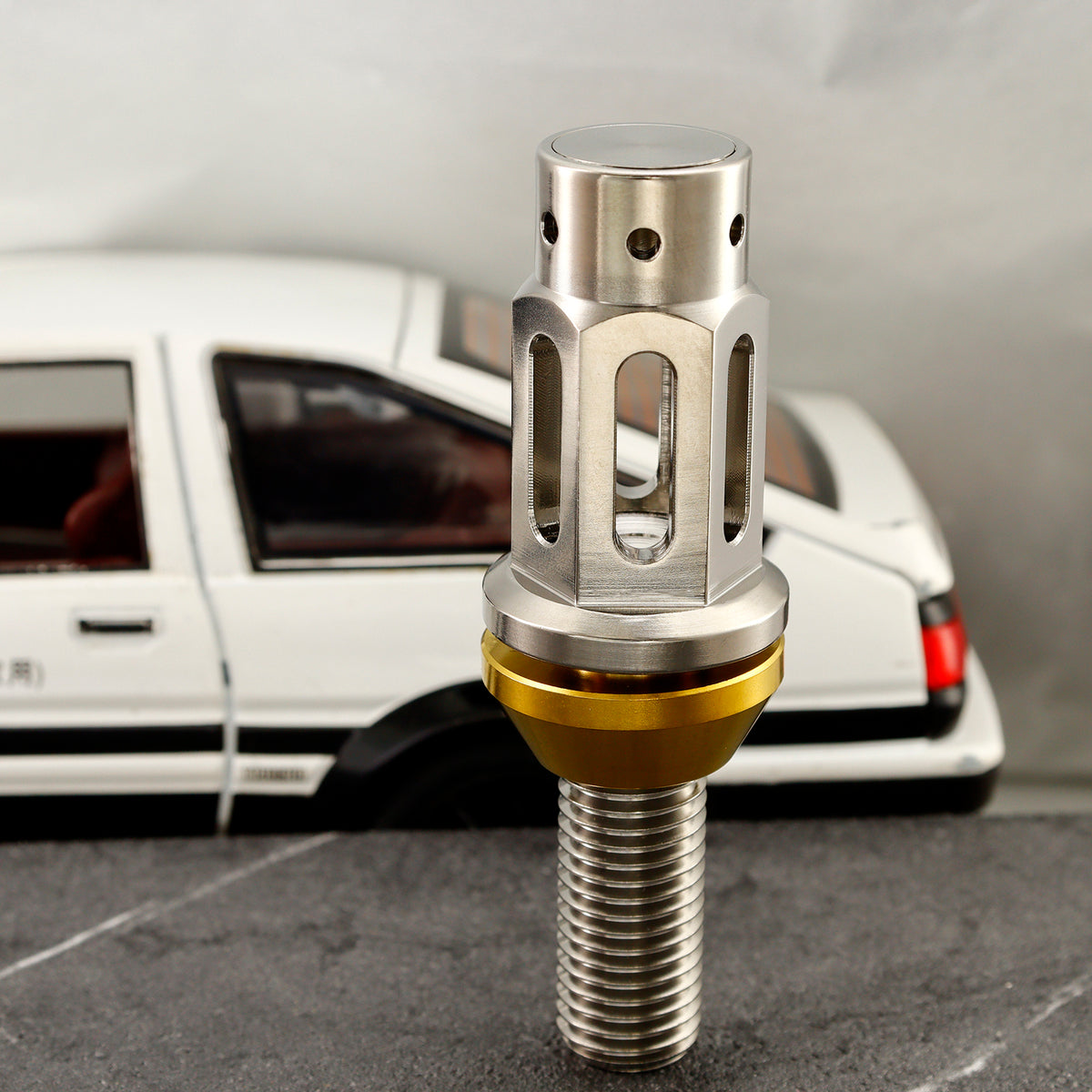

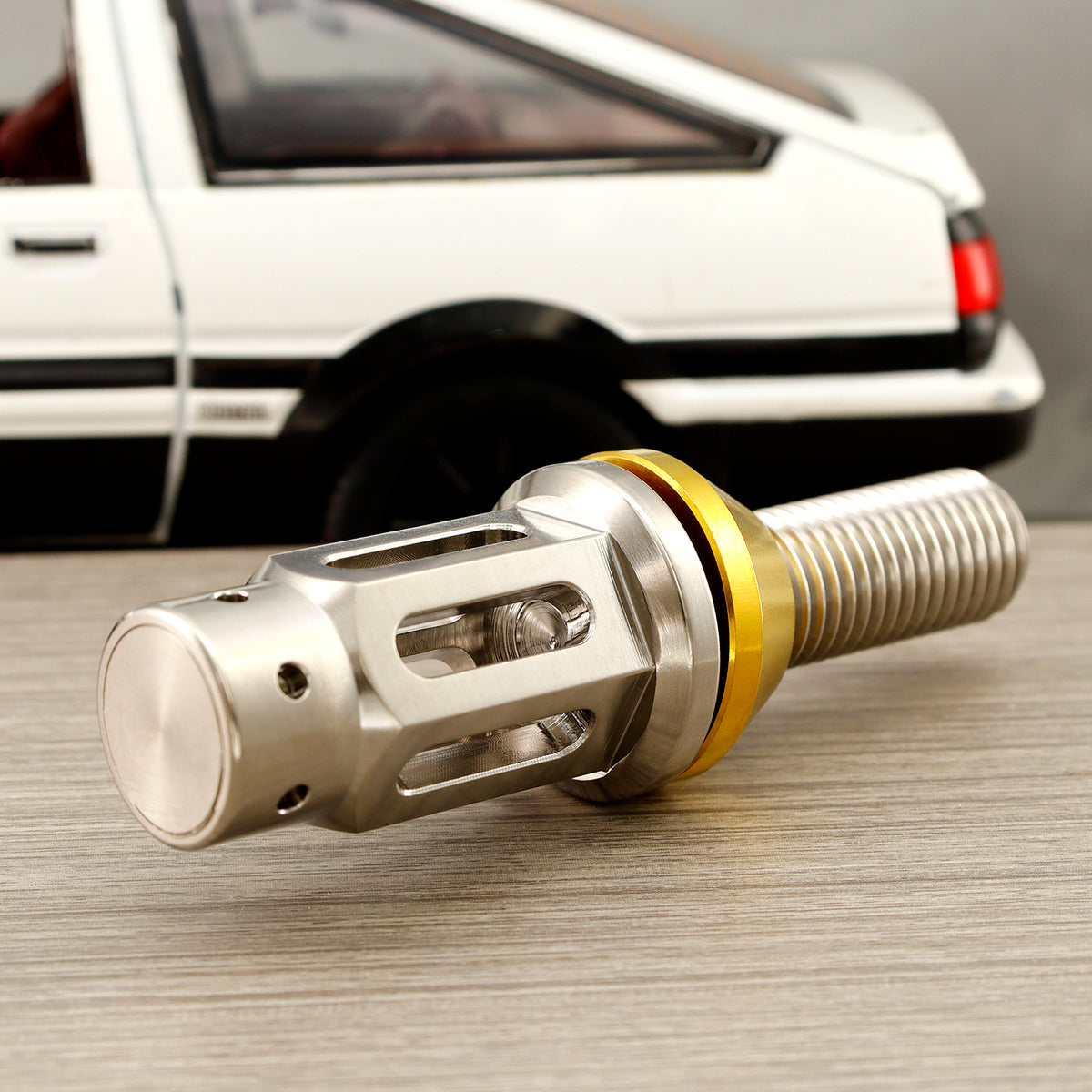

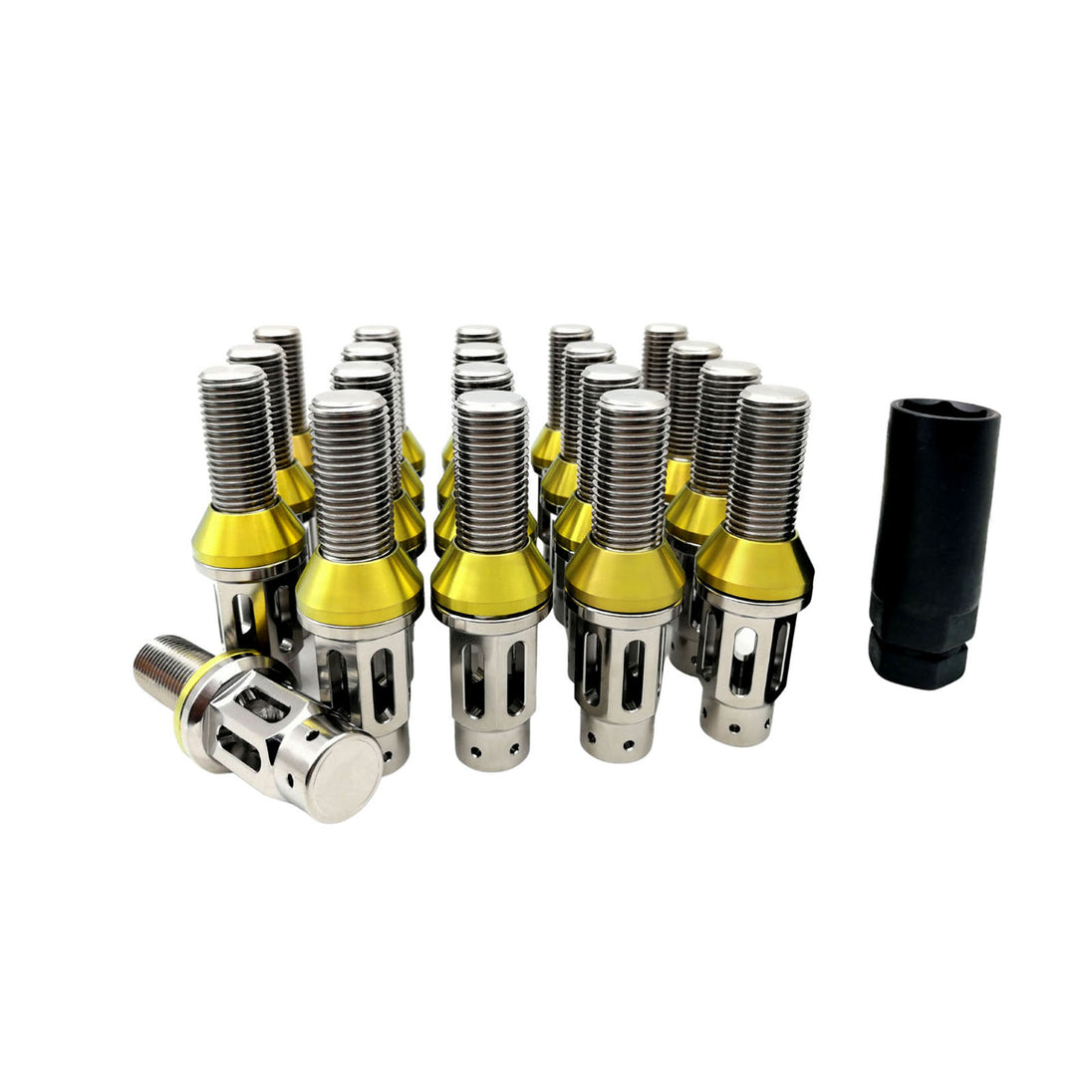

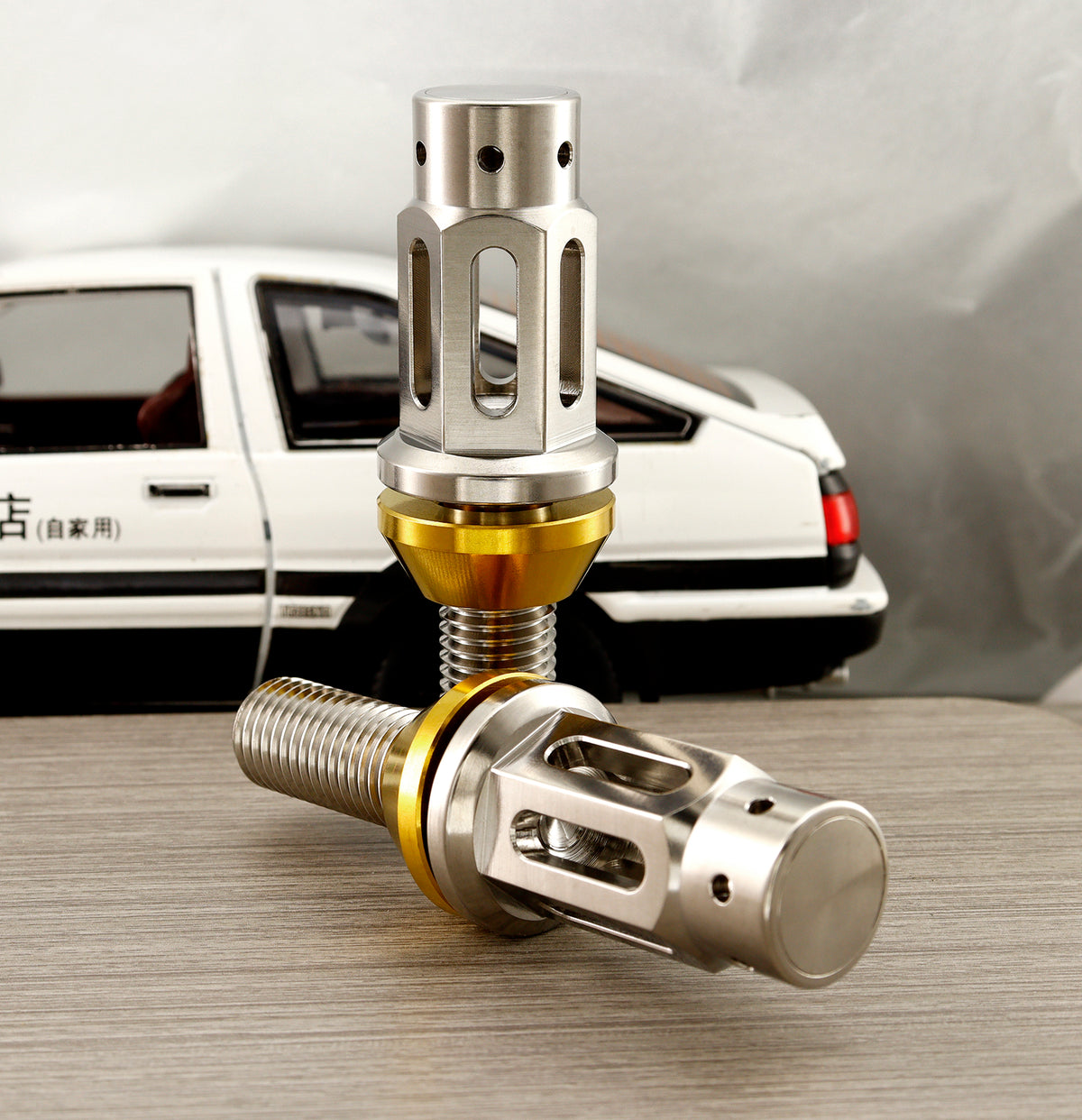

| M12x1.5x28mm | Titanium Raw |

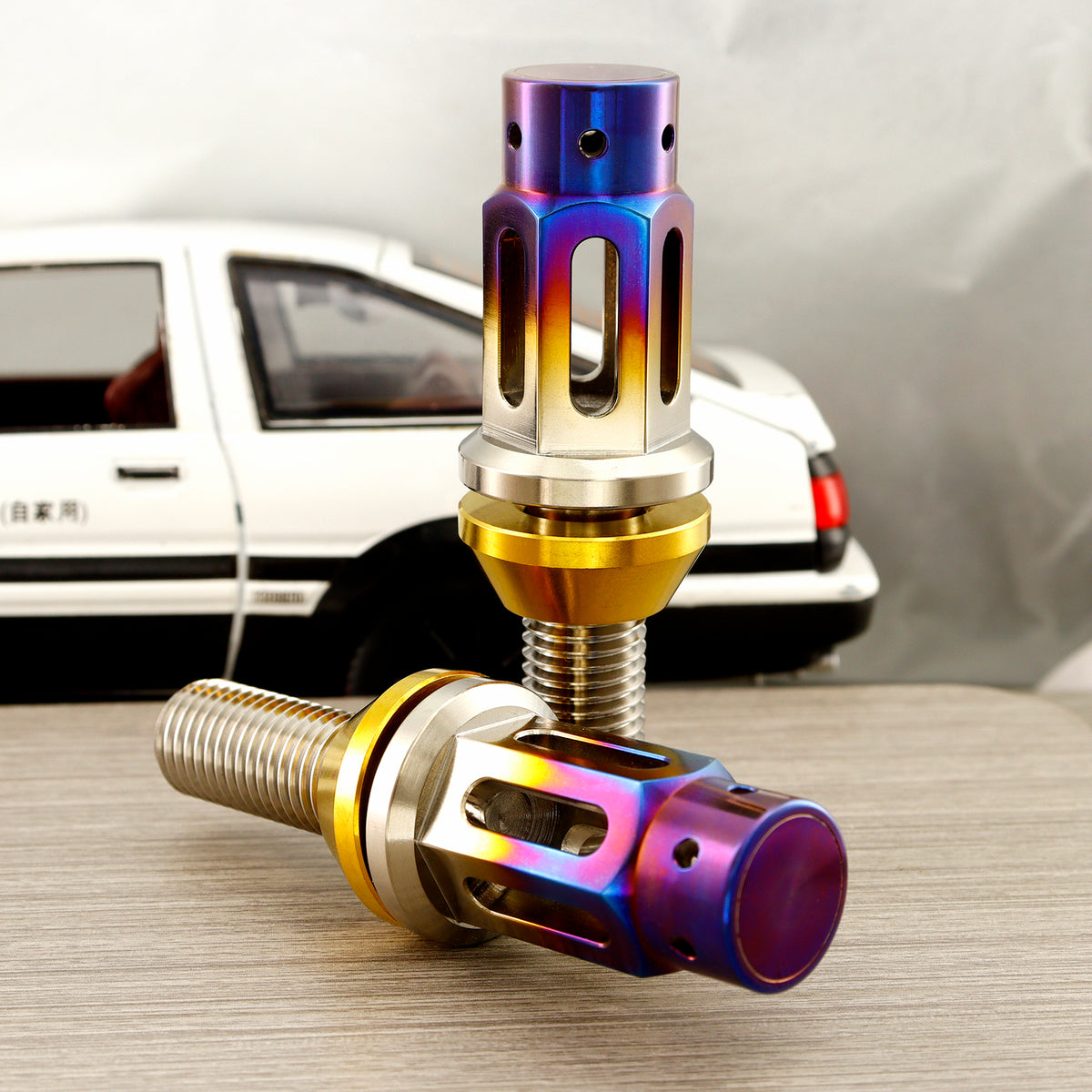

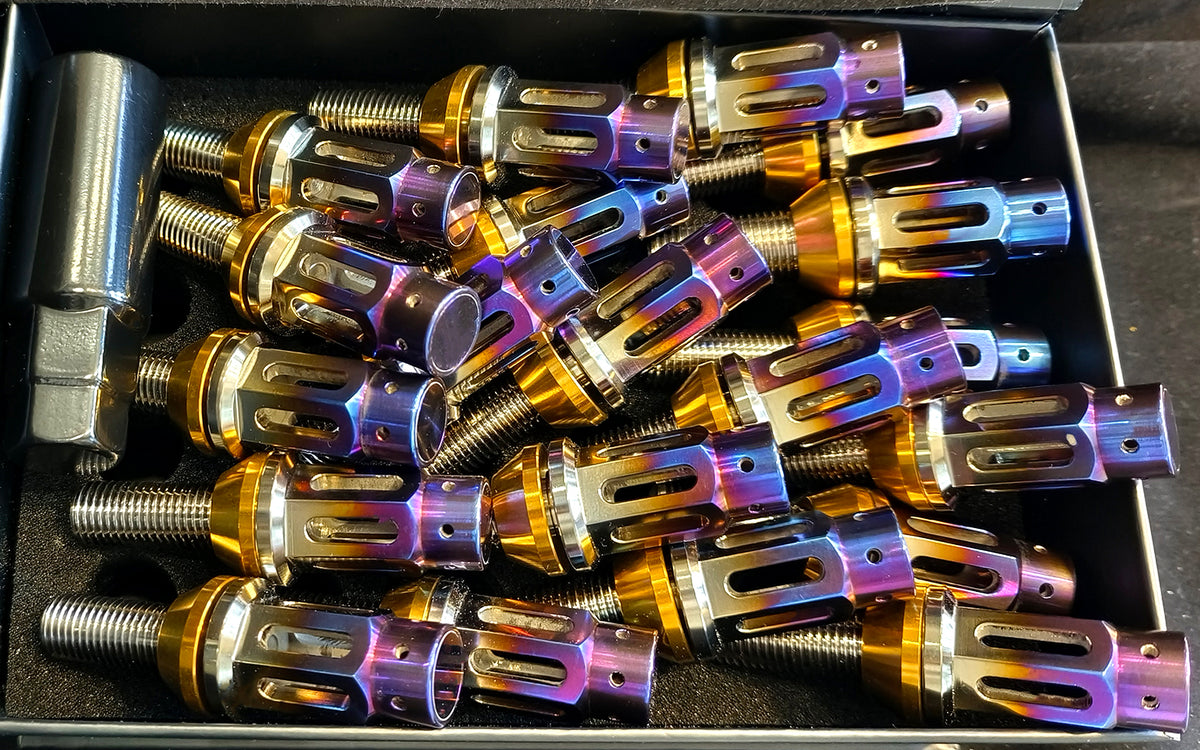

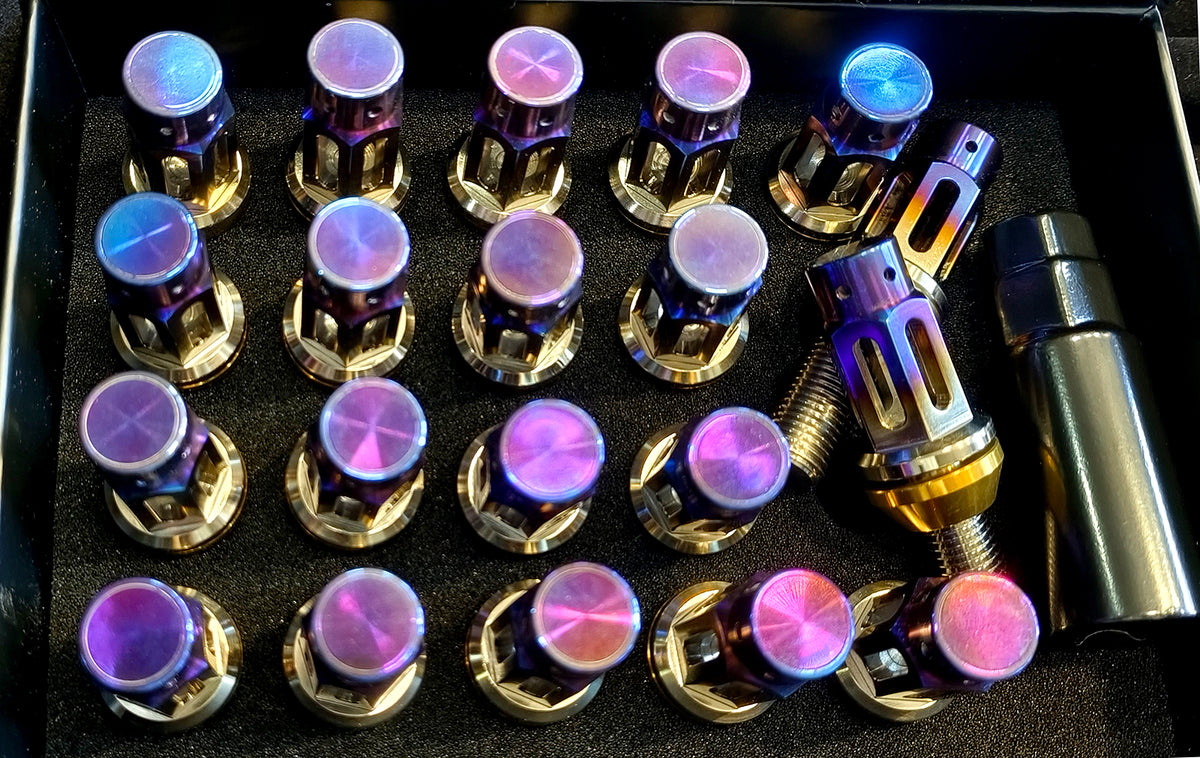

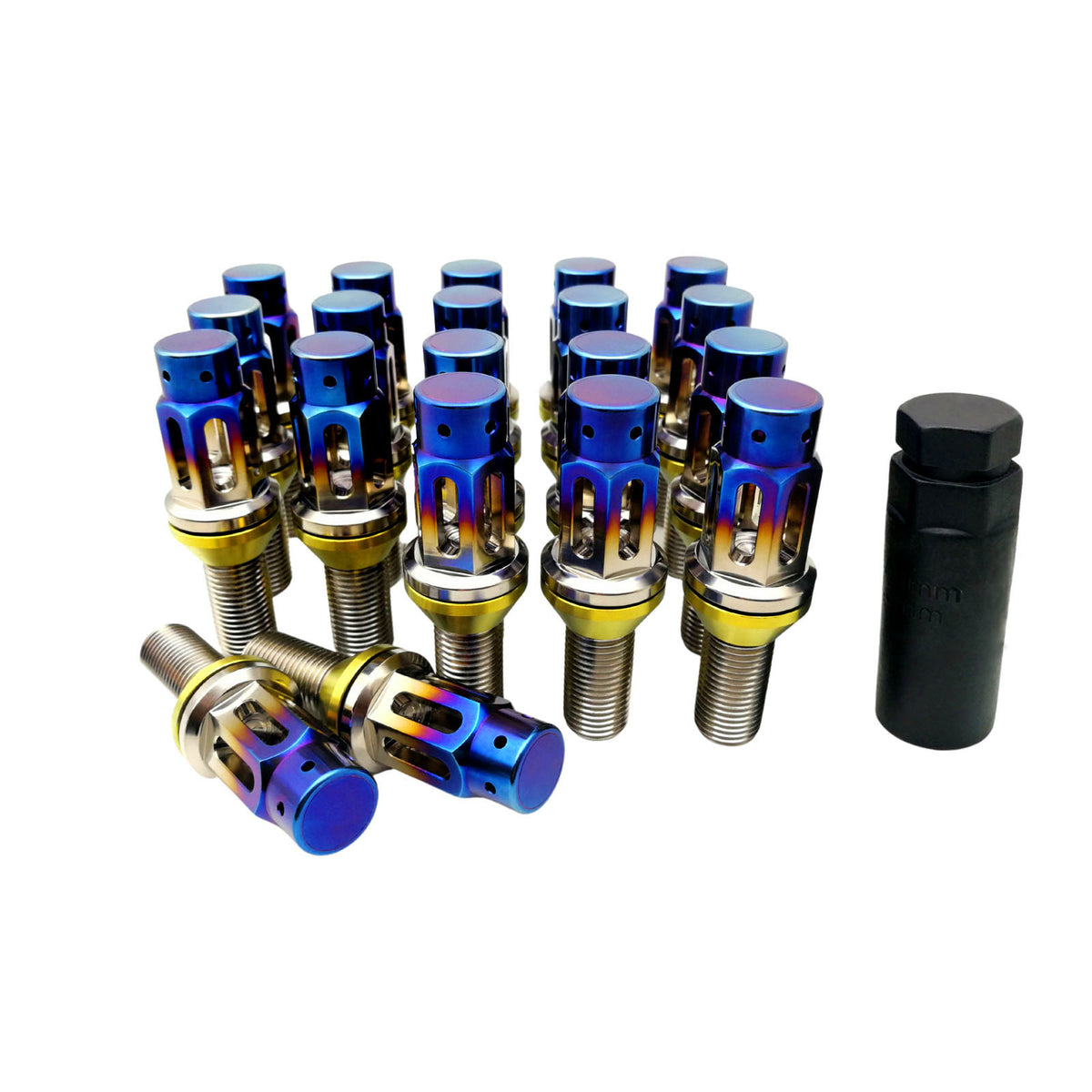

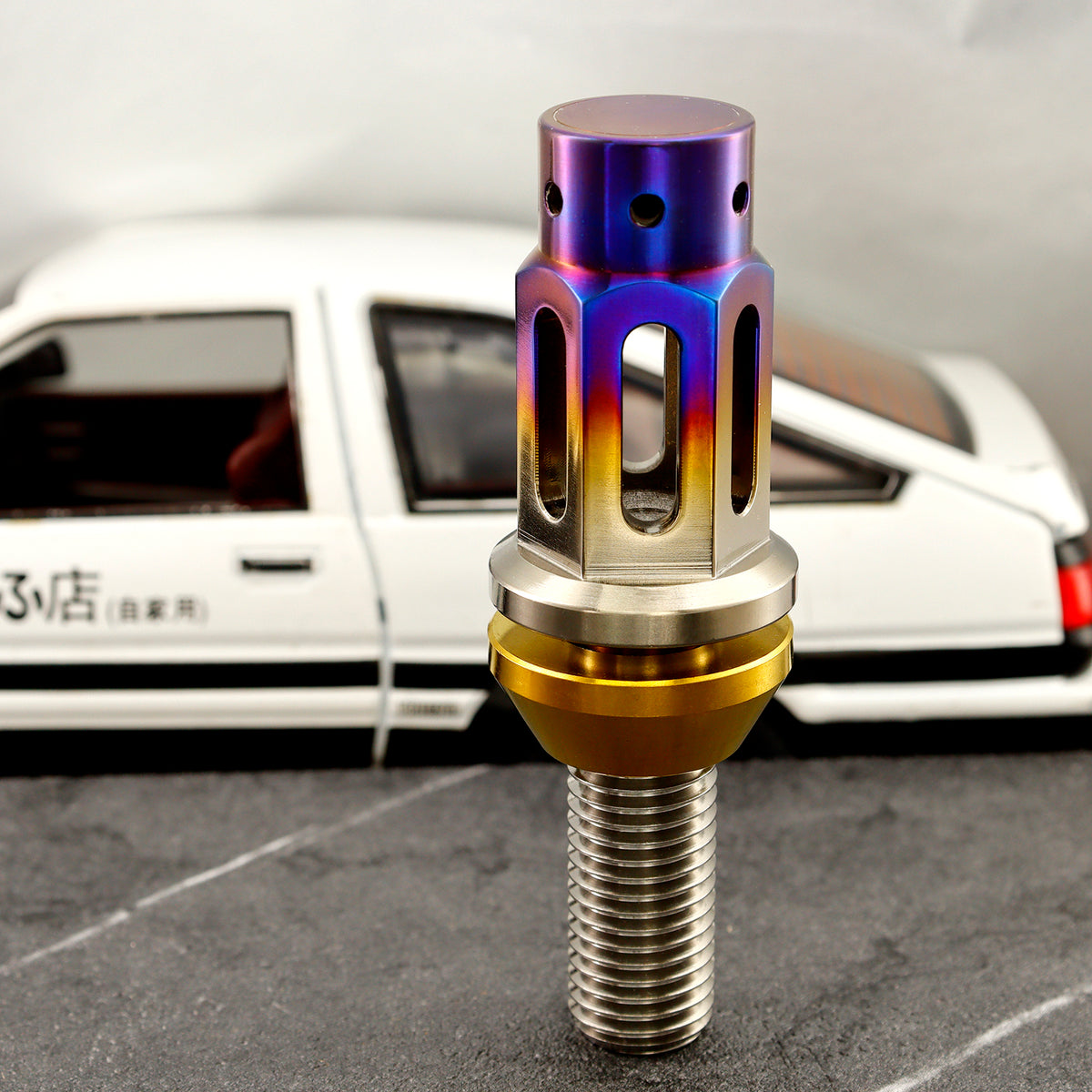

| M12x1.5x28mm | Burnt Blue |
| M14x1.5x28mm | Titanium Raw |
| M14x1.5x28mm | Burnt Blue |
Color note: Actual color may vary slightly due to monitor settings and lighting. PVD finishes may have batch variation.
Hollow Taper Design – What It Does
The hollow taper (conical bushing) design provides a more stable friction coefficient between the bolt seat and the wheel hub. This helps maintain consistent clamping force under load and reduces the risk of the bolt loosening over time. The hollow cutout sections reduce weight without sacrificing strength — a design detail that matters for high-performance and track applications.
Conical Seat – For Aftermarket Wheels Only
Most OEM wheels use a ball seat (spherical) bolt. Aftermarket wheels — BBS, Enkei, Work, and nearly every tuner-style wheel — require a 60° conical seat. This bolt is built for that application.
Do not mix seat types. Using a conical bolt in a ball-seat wheel (or vice versa) creates single-line contact instead of full surface contact. The bolt can loosen while driving.
Compatibility
| Thread Size | Typical Applications |
|---|---|
| M12x1.5 | BMW (older models), MINI, some VW/Audi with M12 thread, aftermarket wheels requiring M12 |
| M14x1.5 | BMW (newer), Mercedes, VW, Audi with M14 thread, most aftermarket wheels |
Always confirm your vehicle's thread size (M12 or M14) and your wheel's seat type (conical) before ordering. If you have OEM wheels, verify whether they use ball seat or conical seat.
Installation Notes
Do not install titanium bolts dry. Galling (cold welding) can occur on the first install and permanently damage threads.
-
Clean hub threads thoroughly with a thread chaser and brake cleaner.
-
Apply nickel-based anti-seize to the bolt threads only. Do not apply to the conical seat — seat friction holds the wheel securely. Copper-based anti-seize must not be used with titanium.
-
Hand-start each bolt until finger-tight. Never use an impact gun to start titanium fasteners.
-
Torque to the vehicle manufacturer's specification using a calibrated torque wrench.
-
Re-check torque after 50–100 km.
Quality & Service
-
Manufactured in accordance with ISO9001:2015 & AS9100:2018
-
Member of the American Titanium Industry Association
-
Over 60,000 titanium fasteners in stock — ships within 1–2 working days
-
Customization accepted (color / size) — contact us
Package
-

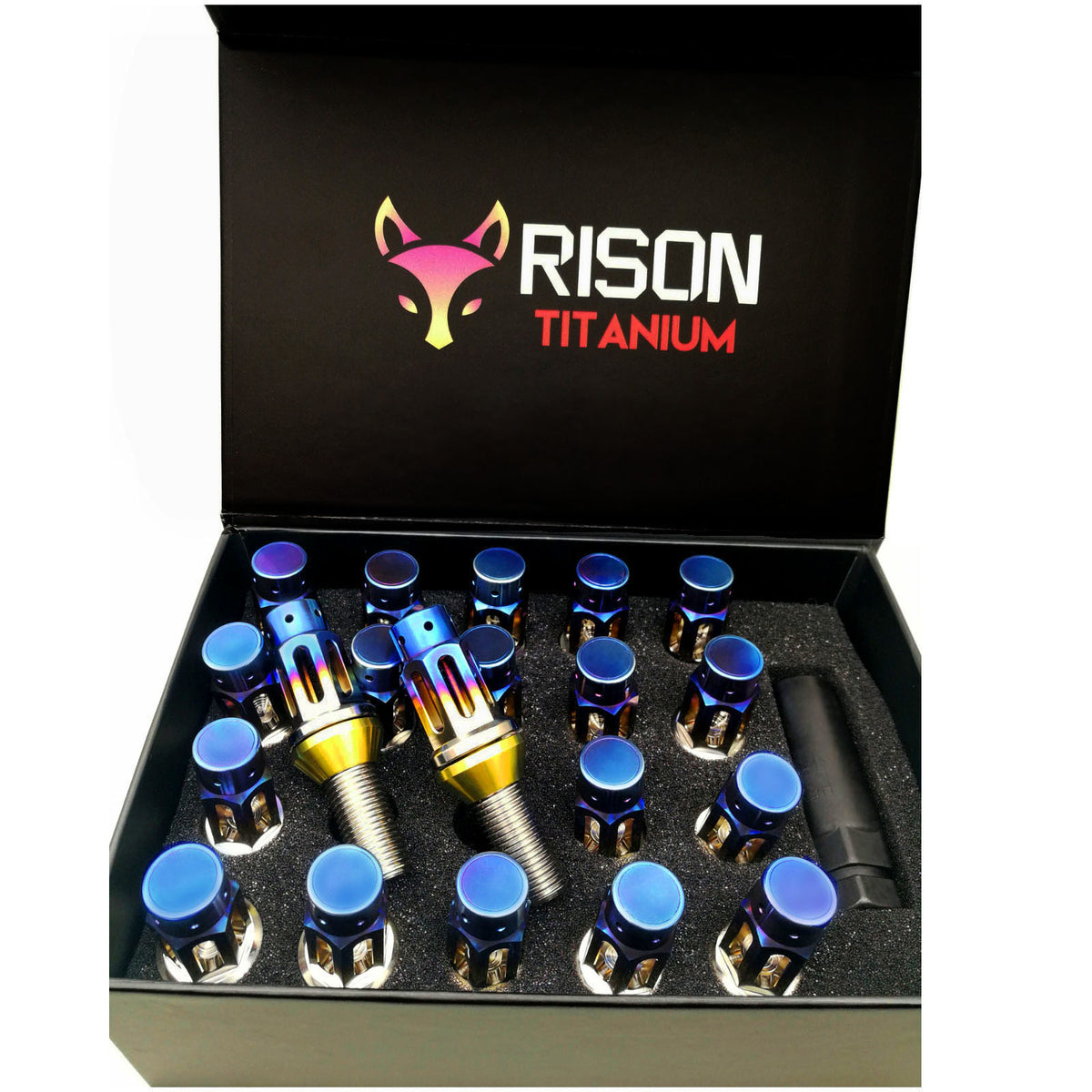

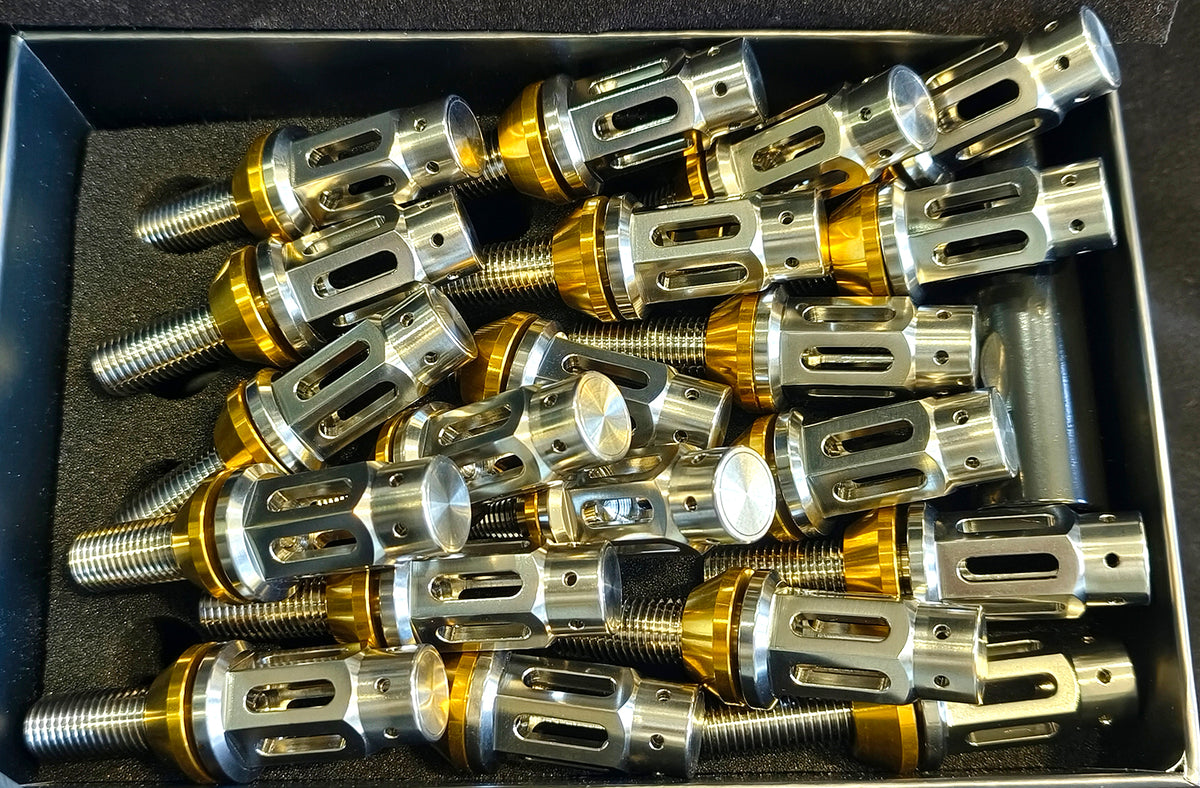

20 pcs GR5 Titanium Lug Bolts
Tips
-
The Customs Clearance Fee Shall Be Borne By the Buyer
-
We reply within 24 hours. If you have any questions, please feel free to contact us.
RISON TITANIUM. Ten years in titanium. Over 60,000 fasteners in stock.
