RISON TITANIUM M6 x 1.0mm GR5 Titanium Dual Drive Brake Caliper Bolts – Partially Threaded (20-30mm, 11 Colors)

∼ Workshop Approved ∼ Your Build Deserves Better ∼ Trusted by Mechanics & Explorers ∼ Workshop Approved ∼ Your Build Deserves Better ∼ Trusted by Mechanics & Explorers ∼ Workshop Approved ∼ Your Build Deserves Better ∼ Trusted by Mechanics & Explorers ∼ Workshop Approved ∼ Your Build Deserves Better ∼ Trusted by Mechanics & Explorers ∼ Workshop Approved ∼ Your Build Deserves Better ∼ Trusted by Mechanics & Explorers ∼ Workshop Approved ∼ Your Build Deserves Better ∼ Trusted by Mechanics & Explorers ∼ Workshop Approved ∼ Your Build Deserves Better ∼ Trusted by Mechanics & Explorers ∼ Workshop Approved ∼ Your Build Deserves Better ∼ Trusted by Mechanics & Explorers ∼ Workshop Approved ∼ Your Build Deserves Better ∼ Trusted by Mechanics & Explorers ∼ Workshop Approved ∼ Your Build Deserves Better ∼ Trusted by Mechanics & Explorers ∼ Workshop Approved ∼ Your Build Deserves Better ∼ Trusted by Mechanics & Explorers ∼ Workshop Approved ∼ Your Build Deserves Better ∼ Trusted by Mechanics & Explorers ∼ Workshop Approved ∼ Your Build Deserves Better ∼ Trusted by Mechanics & Explorers ∼ Workshop Approved ∼ Your Build Deserves Better ∼ Trusted by Mechanics & Explorers ∼ Workshop Approved ∼ Your Build Deserves Better ∼ Trusted by Mechanics & Explorers ∼ Workshop Approved ∼ Your Build Deserves Better ∼ Trusted by Mechanics & Explorers ∼ Workshop Approved ∼ Your Build Deserves Better ∼ Trusted by Mechanics & Explorers ∼ Workshop Approved ∼ Your Build Deserves Better ∼ Trusted by Mechanics & Explorers ∼ Workshop Approved ∼ Your Build Deserves Better ∼ Trusted by Mechanics & Explorers ∼ Workshop Approved ∼ Your Build Deserves Better ∼ Trusted by Mechanics & Explorers

Product Description

🔩 RISON TITANIUM M6 x 1.0mm Dual Drive Brake Caliper Bolts | Partially Threaded (20-30mm)

📏 WHAT IS THIS PRODUCT?

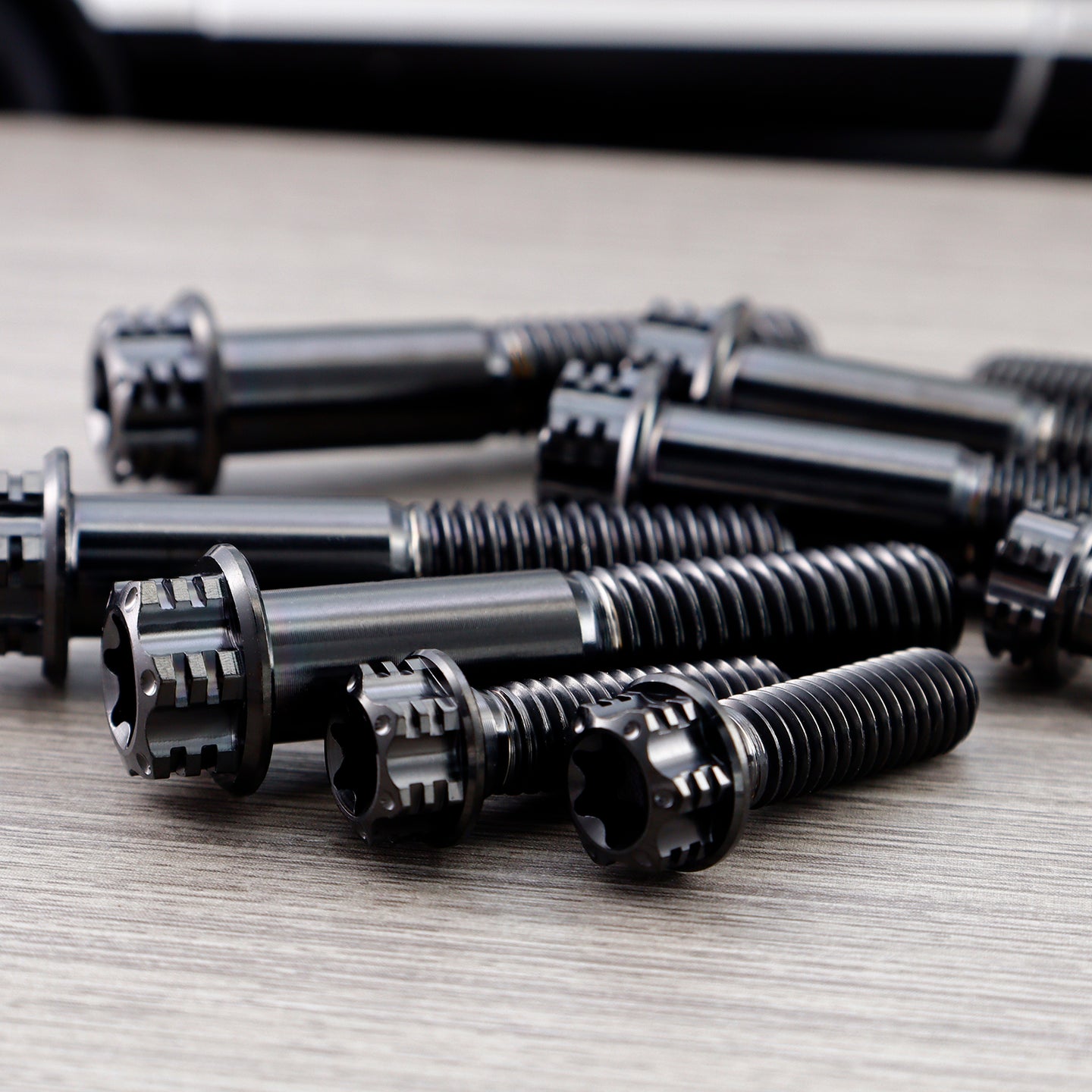

Upgraded GR5 titanium brake caliper bolts where the thread length is fixed at 18mm, and any additional length becomes a smooth shank. When installed, the smooth shank sits inside the caliper mounting ear, taking shear forces – the threaded portion secures the nut or tapped hole. Perfect for typical dirt bike and mountain bike caliper thickness.

⚙️ SPECIFICATIONS
• Material: Grade 5 Ti-6Al-4V (TC4) Aerospace Titanium
• Thread: M6 x 1.0mm
• Thread Type: Partially Threaded – Fixed 18mm thread + smooth shank above
• Head: Dual Drive – External 8mm Hex + Internal Torx30
• Flange Diameter: Φ10mm
• Flange Thickness: 1mm
• Head Height: 5mm
• Tensile Strength: 950 MPa
• Temperature Range: -150°C to +400°C

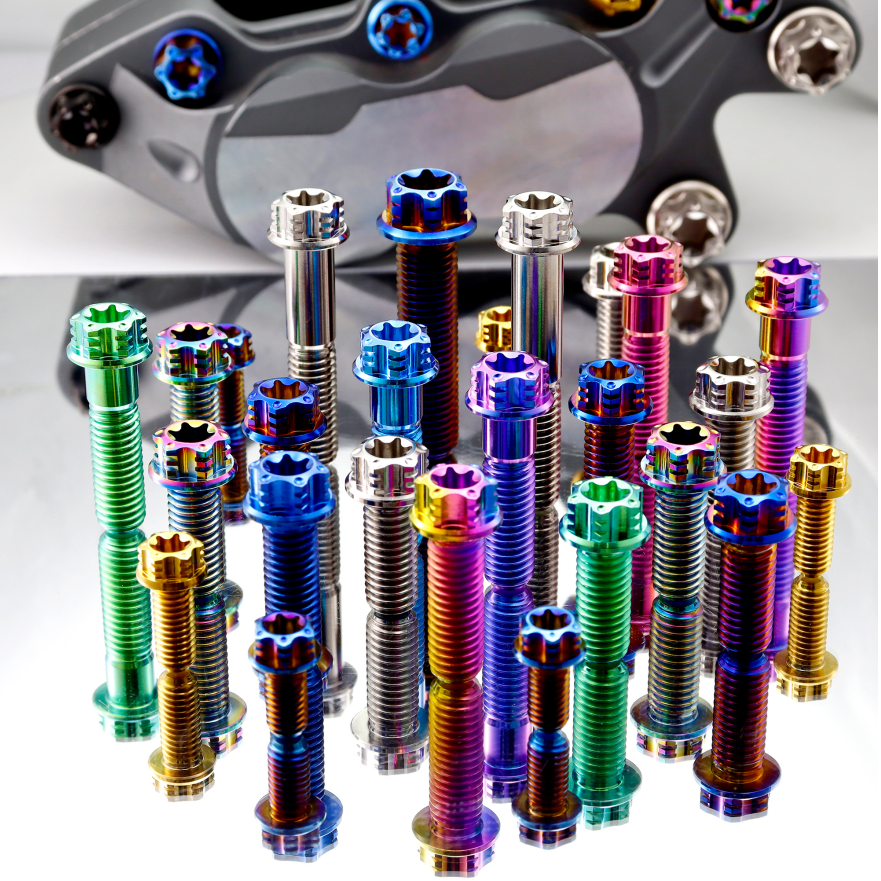

🎨 11 SIGNATURE COLORS
🔘 Titanium Raw: Clean, polished natural titanium.
🛡️ PVD: Black, Gold, Rainbow, Burnt Blue – super-hard, scratch and fade resistant.
🌈 Anodized: Green, Purple, Blue, Candy, Lake Blue, Blue Purple – vivid electrolytic finish.

📐 AVAILABLE LENGTHS (Under Head, Partially Threaded)
20mm • 22mm • 25mm • 28mm • 30mm
(For fully threaded lengths 10-18mm, see separate M6 Fully Threaded listing.)

🎯 WHERE TO USE
🔹 Dirt bike / enduro brake caliper mounting (smooth shank bears shear)
🔹 Mountain bike disc brake calipers with longer mounting ears
🔹 Small motorcycle front/rear calipers (50cc–150cc)
🔹 Go-kart and ATV brake caliper brackets

💪 WHY CHOOSE THESE BOLTS?
✅ Partially threaded design – smooth shank handles shear load, protecting threads
✅ 45% lighter than steel – unworn weight reduction
✅ 950 MPa tensile strength – built for brake stress
✅ Dual drive – 8mm hex or Torx30 for easy access in tight spaces
✅ 11 exclusive finishes – personalize your brake setup
✅ Integrated flange – no separate washer needed
✅ Never rust – goodbye seized brake bolts

🔧 INSTALLATION TIPS
• Apply anti-seize to threads before installation – dry titanium will gall and seize
• Torque to 8-10 N·m (use calibrated torque wrench)
• Always follow vehicle manufacturer’s brake mounting specifications
• Confirm M6 x 1.0mm thread pitch
• Professional installation recommended for brake systems

🏭 WHY RISON TITANIUM?
Factory direct | 100% authentic TC4 | Precision CNC machined

📦 PACKAGE: 5 bolts per set
Select Length & Color above.
