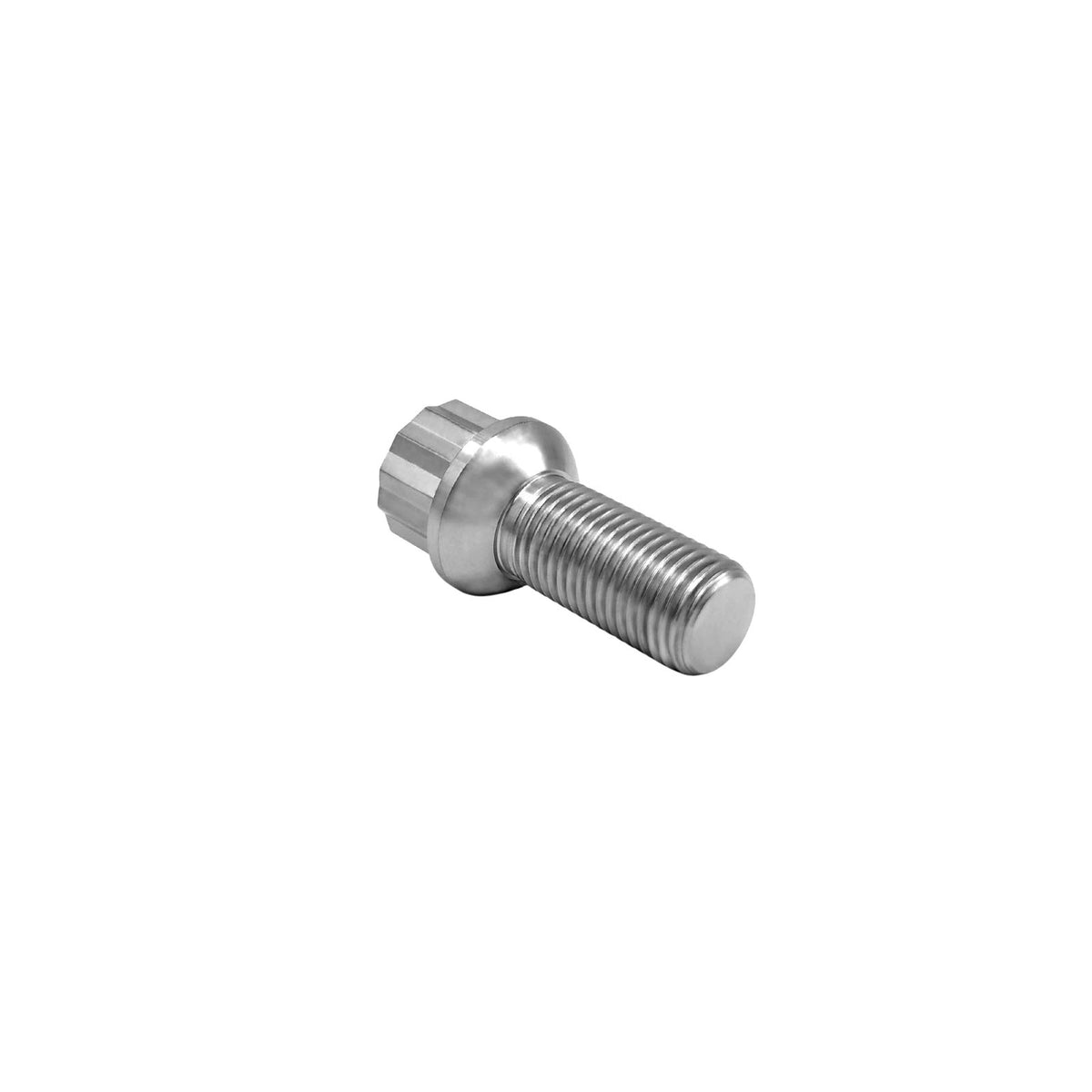

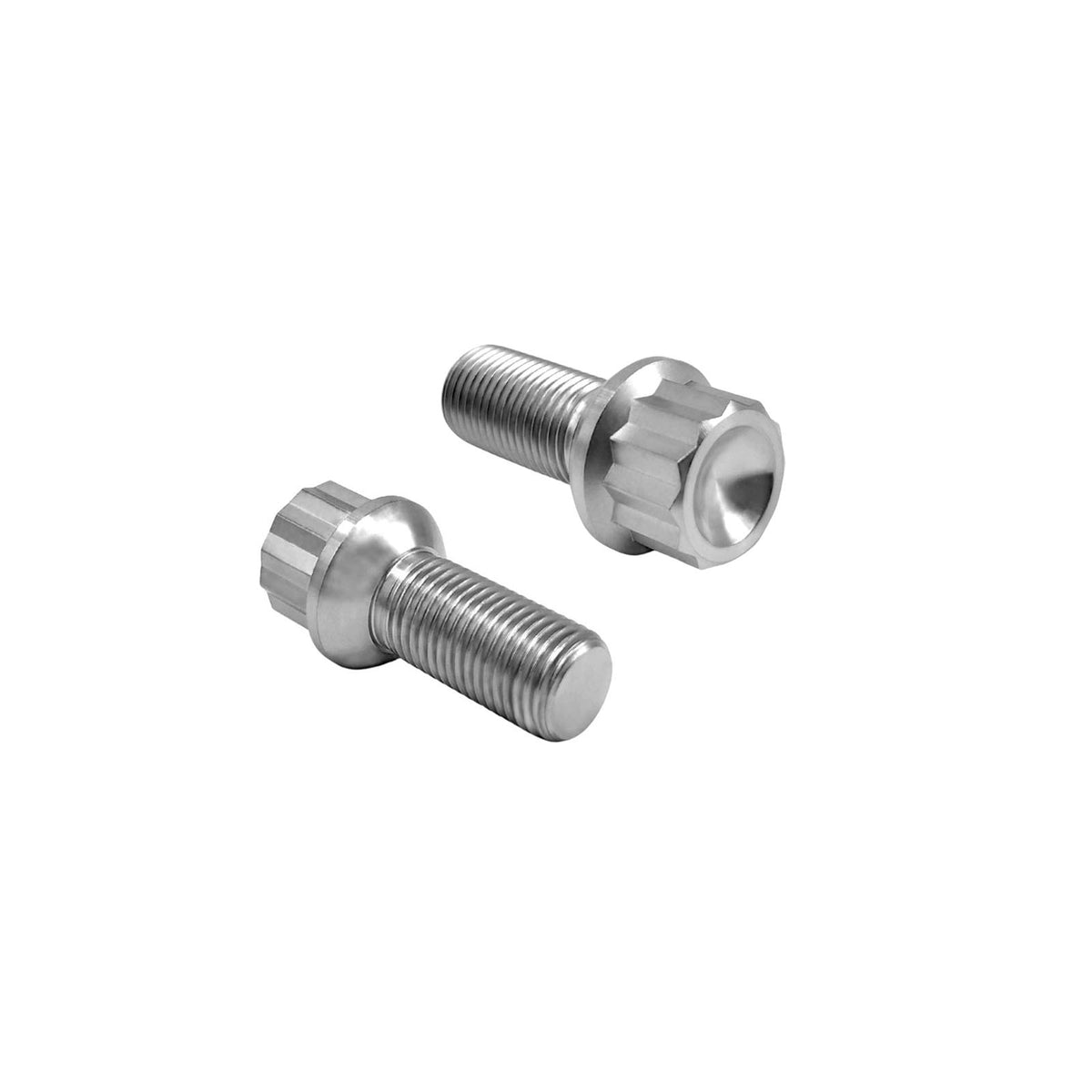

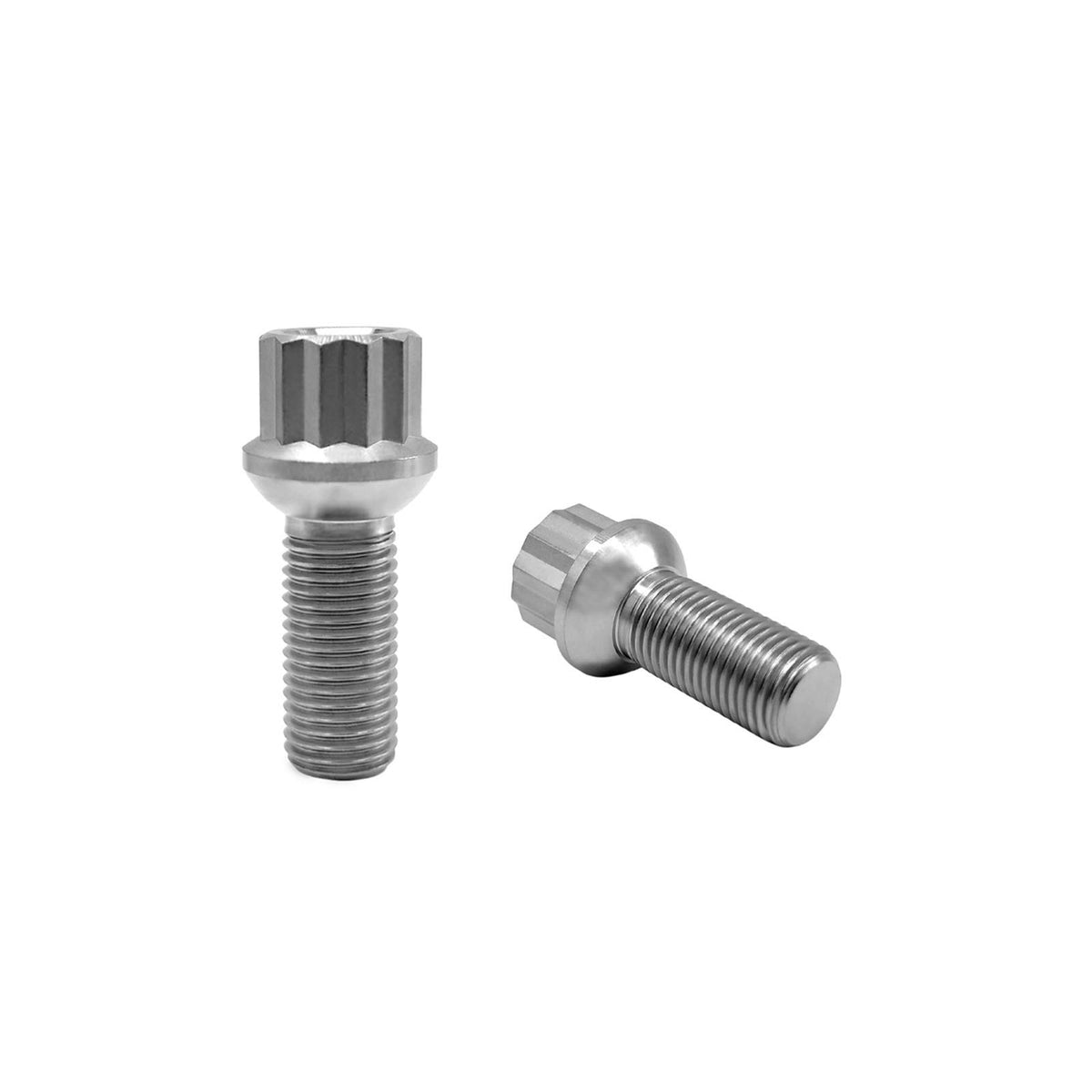

RISON TITANIUM 12PT R13 Wheel Lug Bolts M14x1.5x28mm – 20PCS Set for Audi & VW

A complete 20-piece titanium lug bolt set for Audi and Volkswagen with OEM VAG wheels. Aerospace-grade GR5 (Ti-6Al-4V), R13 ball seat, 12-point head, 28mm thread length, Titanium Raw finish. Lighter than steel, strong enough to trust, and they won't rust.

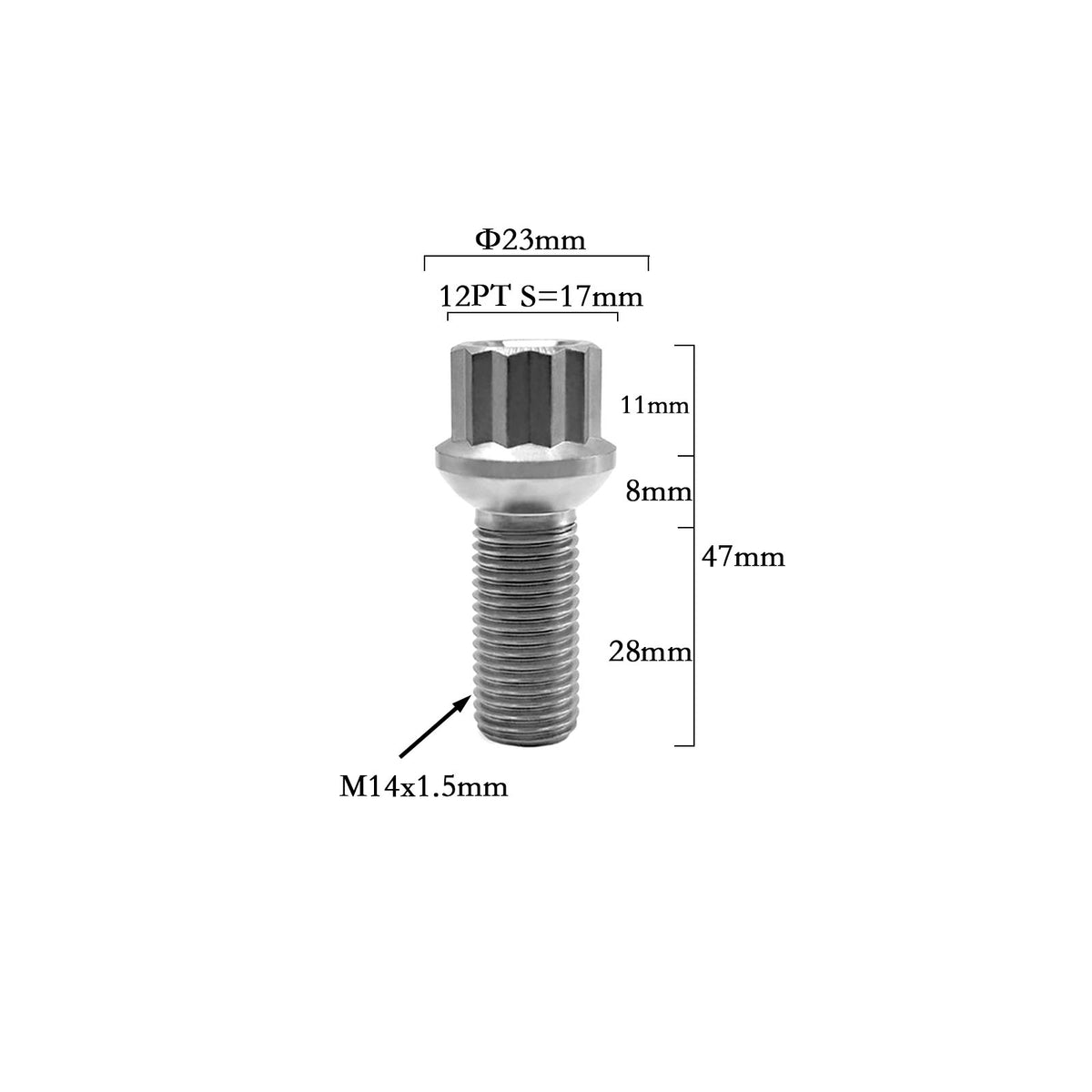

Specifications



Specification Value
Thread Size M14 × 1.5
Thread Length 28mm
Seat Type R13 Ball Seat (Spherical)
Head Style 12-Point (12PT)
Socket Size 17mm 12-point
Material GR5 Titanium Alloy (Ti-6Al-4V / TC4)
Finish Titanium Raw (natural, polished)
Recommended Torque 120 – 130 N·m
Tensile Strength ≥900 MPa
Weight ~45% lighter than steel
Corrosion Resistance 100% rustproof
Pack 20 pcs + 1 free steel socket

R13 Ball Seat – Fits OEM Audi & VW Wheels Only

Audi and Volkswagen factory wheels use an R13 spherical (ball) seat — a rounded recess that distributes clamping force evenly and prevents damage to the wheel hub . This bolt is engineered specifically for that design.

Important: This bolt fits original VAG (Audi / VW / Skoda / Seat) wheels only . If you have aftermarket wheels (BBS, Enkei, Work, etc.), you need a 60° conical seat bolt instead.

Do not mix R13 and R14 bolts. Using the wrong radius creates a single-line contact instead of full surface contact — the bolt can loosen while driving.

Why 12-Point?

Larger tool contact area — higher torque without stripping the head. 12-point allows engagement from more angles .

Easier access in tight wheel wells — common on lowered or performance cars.

Motorsport standard — preferred for quick wheel changes and high-torque applications.

Compatibility



Model Years
Audi A3 / S3 / RS3 2003+
Audi A4 / S4 / RS4 1996+
Audi A6 / S6 / RS6 1995+
Audi A8 / S8 1997+
Audi TT / TTS / TTRS 1999+
Audi Q2 / Q3 2016+
Volkswagen Golf (Mk4–Mk8) 1998+
Volkswagen Jetta / Passat 1990+
Volkswagen Tiguan / Touran 2007+
Volkswagen Beetle / CC / EOS 1998+
Skoda Octavia / Superb / Fabia —
Seat Leon / Ibiza / Ateca —

Not compatible with: Audi Q7 (2007+) — uses 5x130 bolt pattern. Audi Q5, Q7, Q8, e-tron (newer) — may use R14 ball seat; verify before ordering. Always confirm thread size and seat type against your wheel before purchase.

Installation Notes

Do not install titanium bolts dry. Galling (cold welding) can occur on the first install and permanently damage threads.

  1. Clean hub threads thoroughly with a thread chaser and brake cleaner.

  2. Apply nickel-based anti-seize to the bolt threads only. Do not apply to the ball seat — seat friction holds the wheel securely. Copper-based anti-seize must not be used with titanium.

  3. Hand-start each bolt until finger-tight. Never use an impact gun to start titanium fasteners.

  4. Torque to 120–130 N·m in a star pattern using a calibrated torque wrench.

  5. Re-check torque after 50–100 km.

Quality & Service

  • Manufactured in accordance with ISO9001:2015 & AS9100:2018

  • Member of the American Titanium Industry Association

  • Over 60,000 titanium fasteners in stock — ships within 1–2 working days

  • Customization accepted (color / size) — contact us

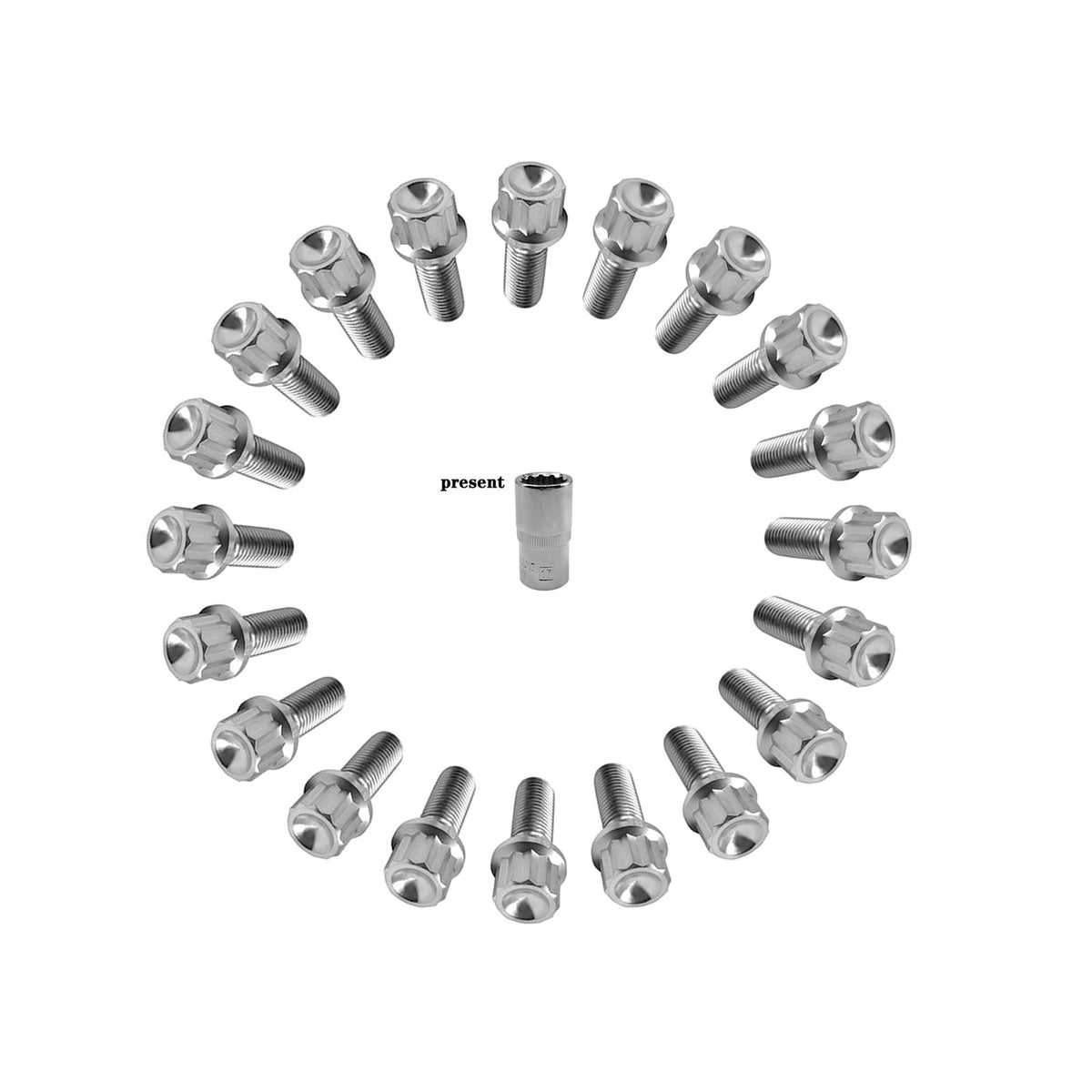

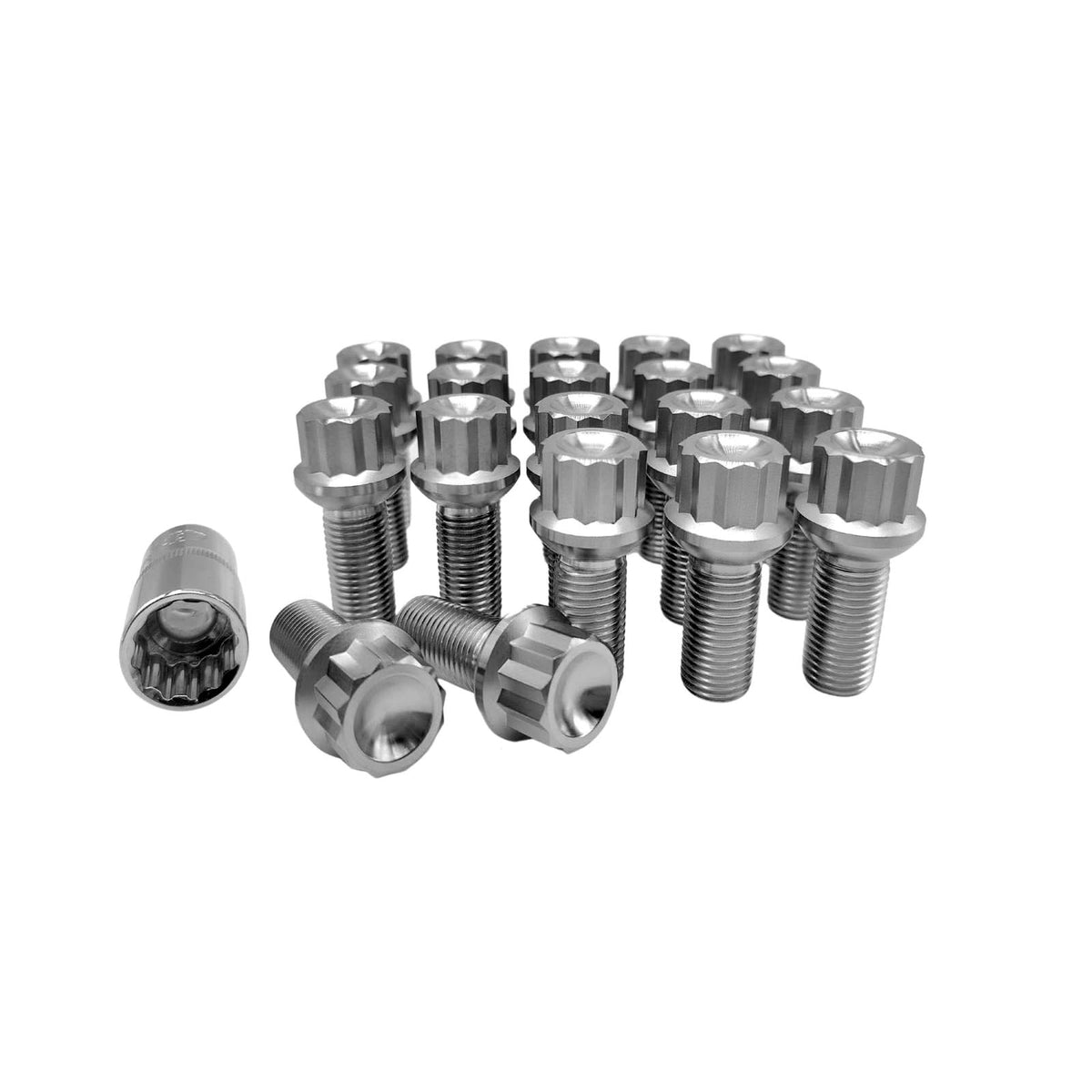

Package

  • 20 pcs GR5 Titanium Lug Bolts (M14×1.5×28mm, R13 Ball Seat, Titanium Raw)

  • 1 pc 17mm steel socket — included as a free gift

Tips

  • The Customs Clearance Fee Shall Be Borne By the Buyer.

  • We reply within 24 hours. If you have any questions, please feel free to contact us.

RISON TITANIUM. Ten years in titanium. Over 60,000 fasteners in stock.
